- Name:Power Relay

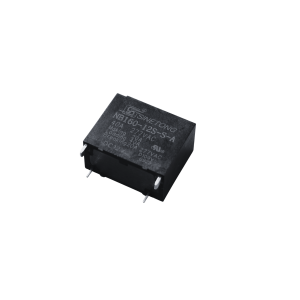

- Model:NB160-12S-S-A 40A
- Brand:SINETONG

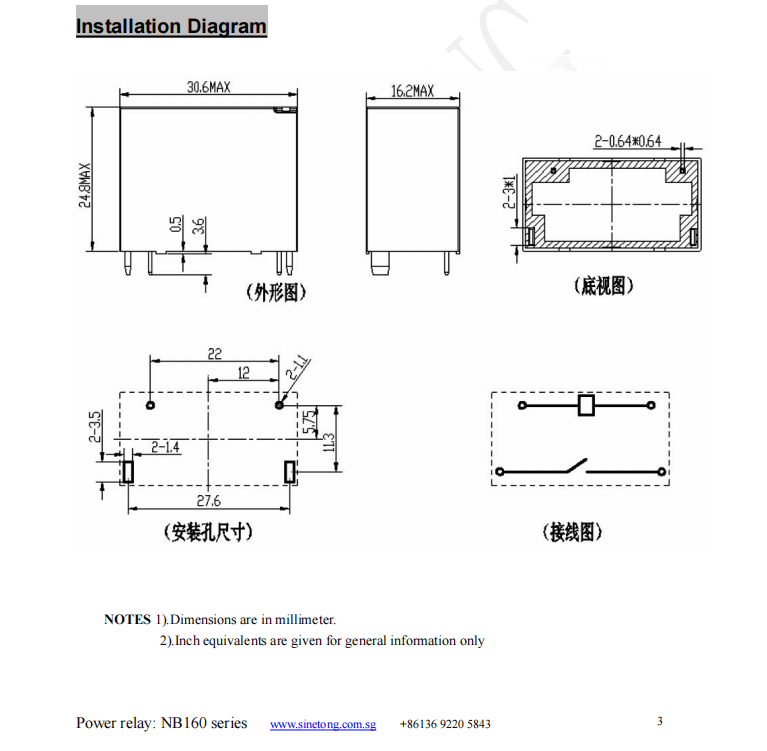

- Summary:Rated current:40A;Size:(30.6*16.2*24.8)mm
Product Details
Detailed Product Description
ORDER INFORMATION
NB160 — 12VDC— S—A — X
1 2 3 4 5
1. Model: NB160
2. Coil Rated Voltage(VDC): 6, 9, 12, 24, 48;
3. Contact material: S: AgSnO2
4. Contact Form: A: 1A
5. Customer code: X D109V: G-1.5mm
