- 类别:功率继电器

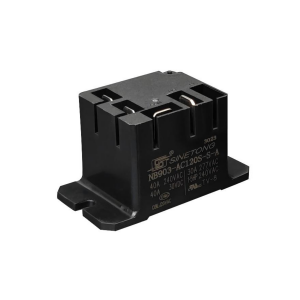

- 型号:NB903-12S-S-A 30A 12V
- 品牌:SINETONG
- 简述:额定电流:30A; 尺寸:32*27.2*20mm
产品详情
详细信息
订货信息：
NB903 _ –AC220 S --S --A 4 -L
1 2 3 4 5 6 7 8
1.Model Number: NB903
2.E: Max 30A for NO Type Without E: Max 40A for NO Type
3.Coil Rated Voltage: 24V; 110V; 120V; 220V; 240V; 270V(AC)
4.Construction: S:Sealant ; D: Dust-proof
5.Contact Material: S:AgSnO2 C: AgCdO
6.Contact Form: A:Normal Open(NO) B:Normal Close(NC) C:Conversion(C)
7.Pin-out Form :
A4: without middle pin-out for NO type A5: with middle pin-out for NO type
B4: without middle pin-out for NC type B5: with middle pin-out for NC type
C5: without middle pin-out for conversion C6: with middle pin-out for conversion
8. Low profile (H: 20mm)
